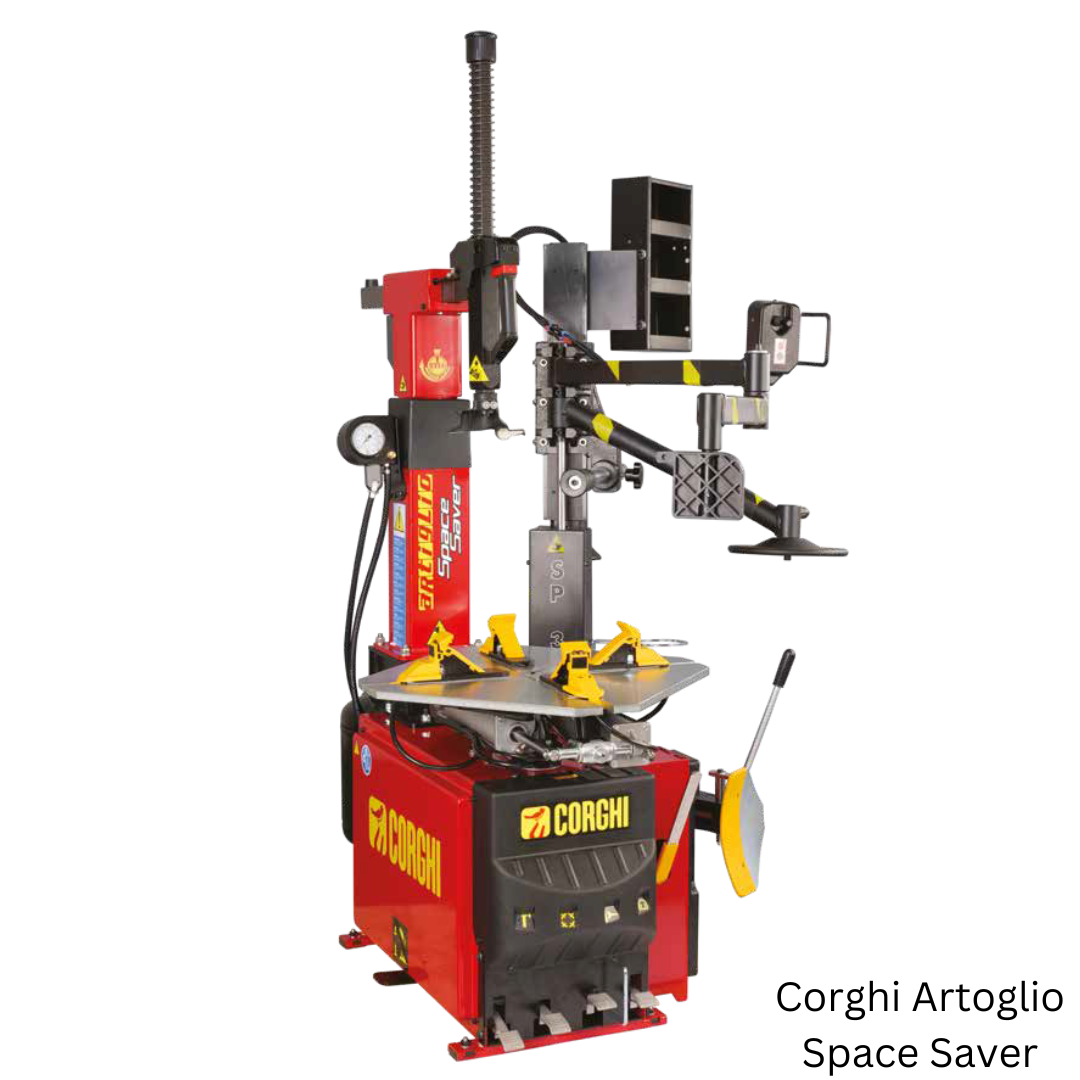

CORGHI ARTIGLIO SPACE SAVER

- +

Automatic tyre changer with rotating pole and turntable for wheels up to 24″.
Artiglio Space Saver is an automatic tyre changer featuring a pole working with side rotation.

The innovation of this pole, with pneumatic rotation, is that it ensures reduced operating dimensions and allows installing the machine against a wall. This solution allows saving almost 1 m / 3.3 ft and is particularly suitable for places with little space and/or special operating needs. Artiglio Space Saver offers wheel clamping up to 24” (from the outside), a maximum wheel diameter of 1035 mm / 40.7″ and 14” in width.

It can be used with car, SUV, commercial vehicle and motorcycle wheels (using proper accessories).

Weight 265 kg
Dimensions 134.7 × 125.3 × 201.9 cm
Outside Clamping Capacity

10" – 24"

Inside Clamping Capacity

13" – 26"

Max Wheel Diameter

1.035mm

Height Above the Ground

690mm

Bead-Breaking Blade Opening

3" / 14" (370mm)

Max Self Centering Torque

1.200NM / 1.300NM by Inverter

# of Bead Breaker Blade Positions

2 Positions

Double Acting Braking Cylinder

Yes

Bead Breaker Force on Tire

15,5KN

DV Version Rotation Speed

6 – 15 RPM

Packaging

Per x1 Unit

Corghi Artiglio Space Saver - User Manual

Download(2 MB)

User manual for the Corghi Artiglio Space Saver
